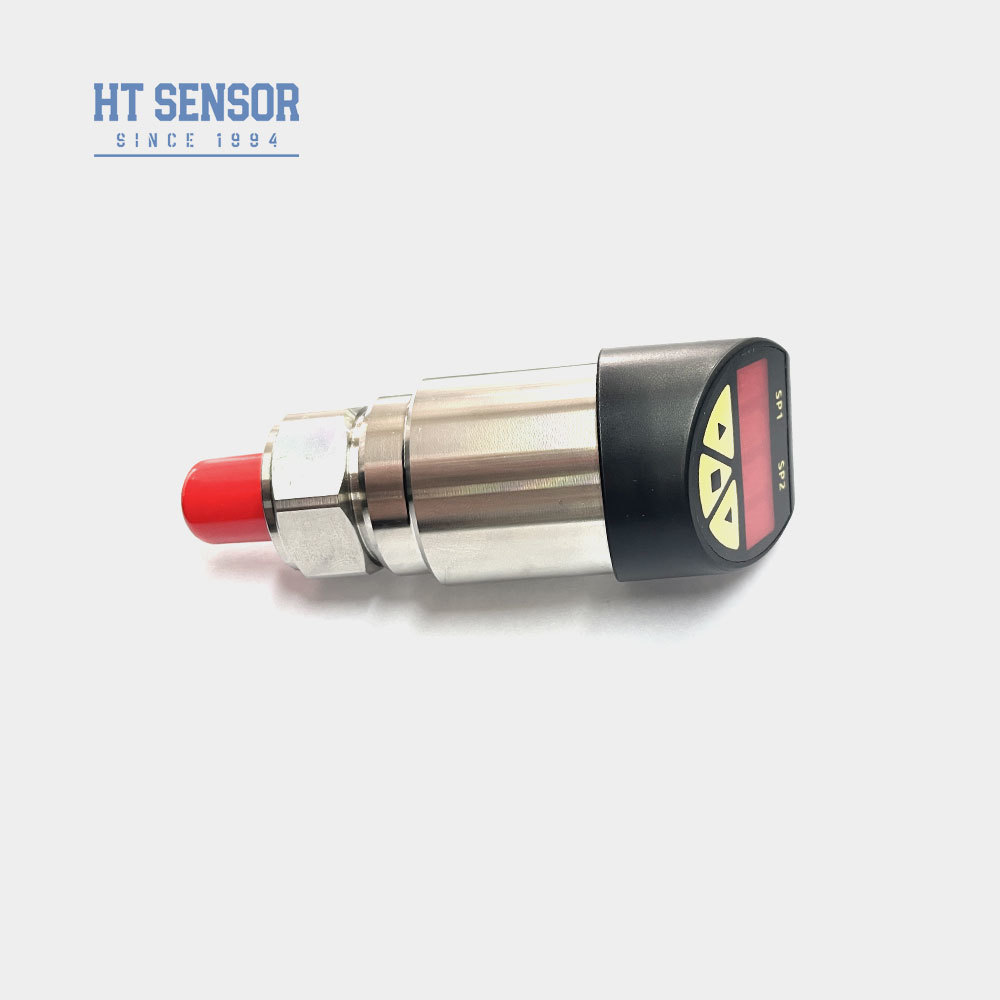

Digital LED Pressure Switch Stainless Steel Electronic Pressure Switch
Product Details
| Model nr: | BPZK041 | Stosowanie: | Przełącznik sterowania |
|---|---|---|---|
| kontakt: | Normalnie otwarte | Marka: | HENGTONG |
| Nitka: | OEM | Wyświetlacz: | PROWADZONY |
| Moc: | 24vdc | Wyjście: | 4-20mA z 2 przełącznikami |
| Pakiet transportowy: | Karton | Specyfikacja: | 10 kpa ~ 100 MPa |
| Znak firmowy: | HENGTONG | Pochodzenie: | Chiny |
| Waga brutto pakietu: | 0,500 kg | Dostosowywanie: | Dostępny |
| Podkreślić |
stainless steel digital pressure switch,LED electronic pressure switch,digital pressure switch with warranty |
||
Product Description
Product Description
Digital LED Pressure Switch Stainless Steel Electronic Pressure Switch
BPZK04 Electronic Pressure Switch
Introduction:
Product Features:
- Stainless steel structural design with versatile pressure interface options.
- with high-brightness LED pressure display.
- Powered 24VDC.
- Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
- High accuracy.
Applications:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.
| Performance Parameters | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| 0-10KPa~2MPa(Differential Pressure) | |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.4kg |
| Outline Construction | |
| Dimension |
|
| Ordering tips |
1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points, and whether it comes with an RS485 interface.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
